Flow Chemistry

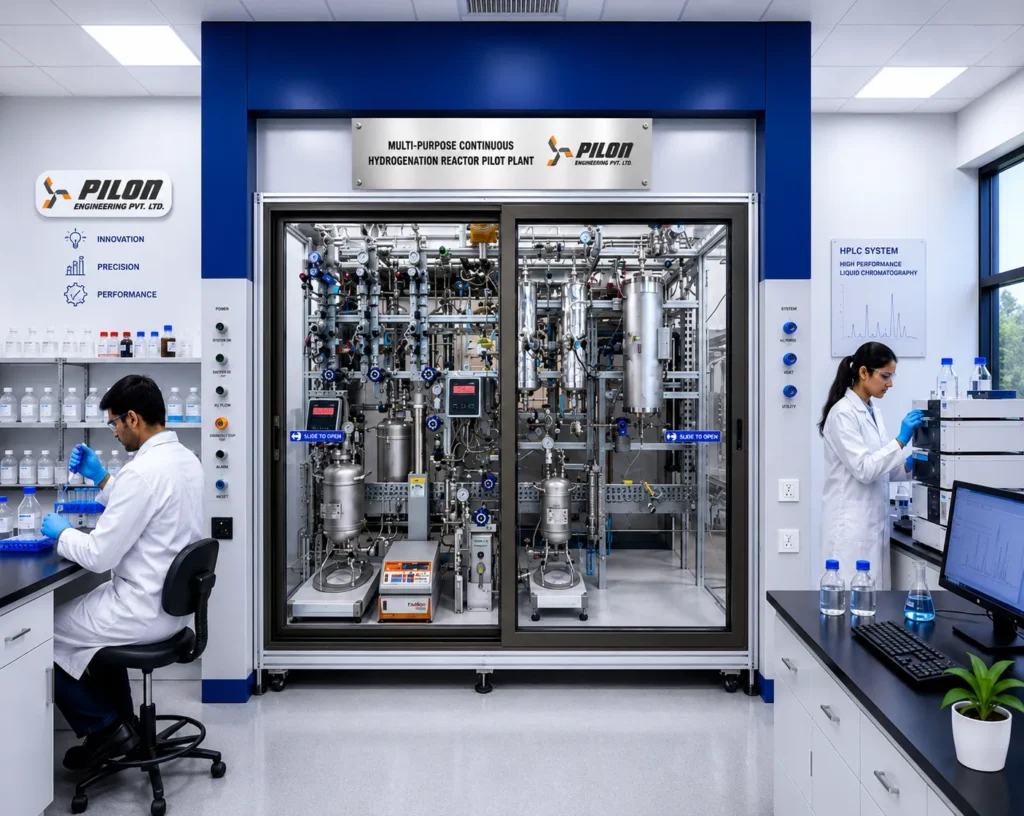

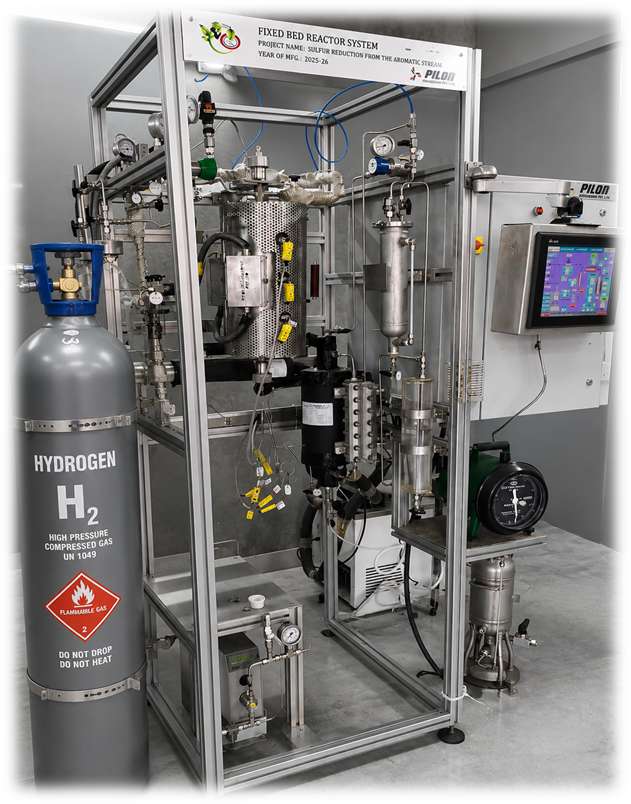

PILON'S CONTIHYFLOW

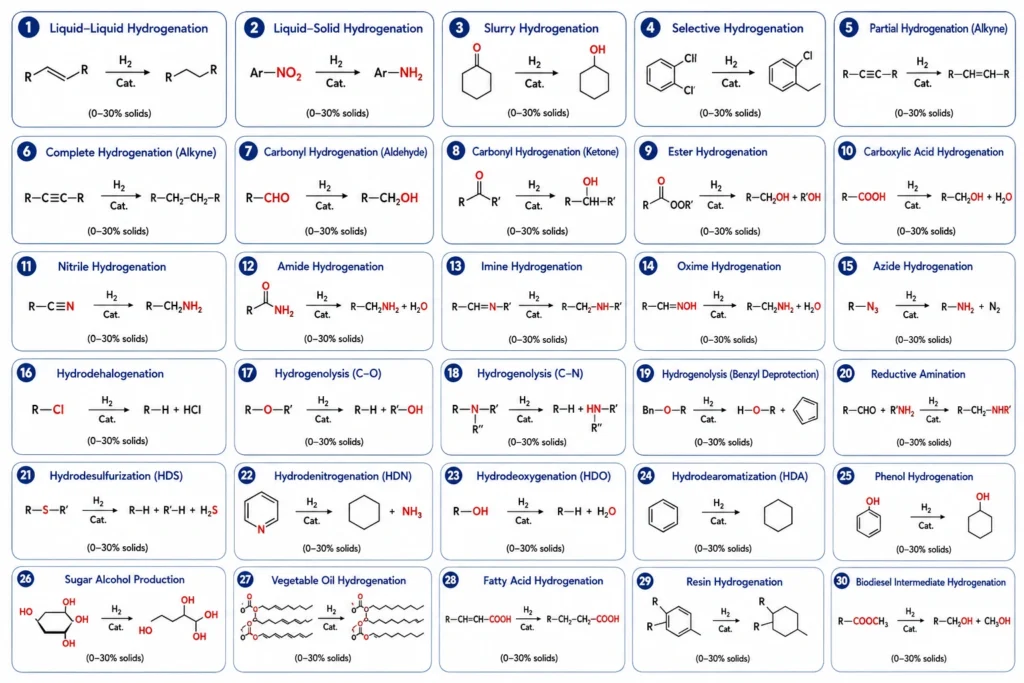

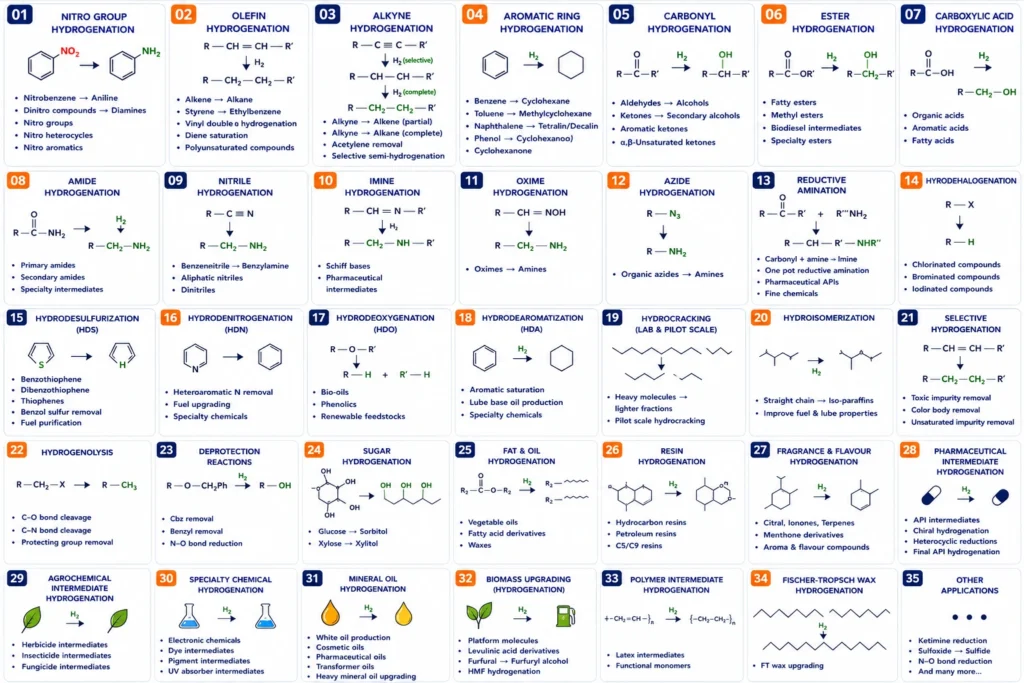

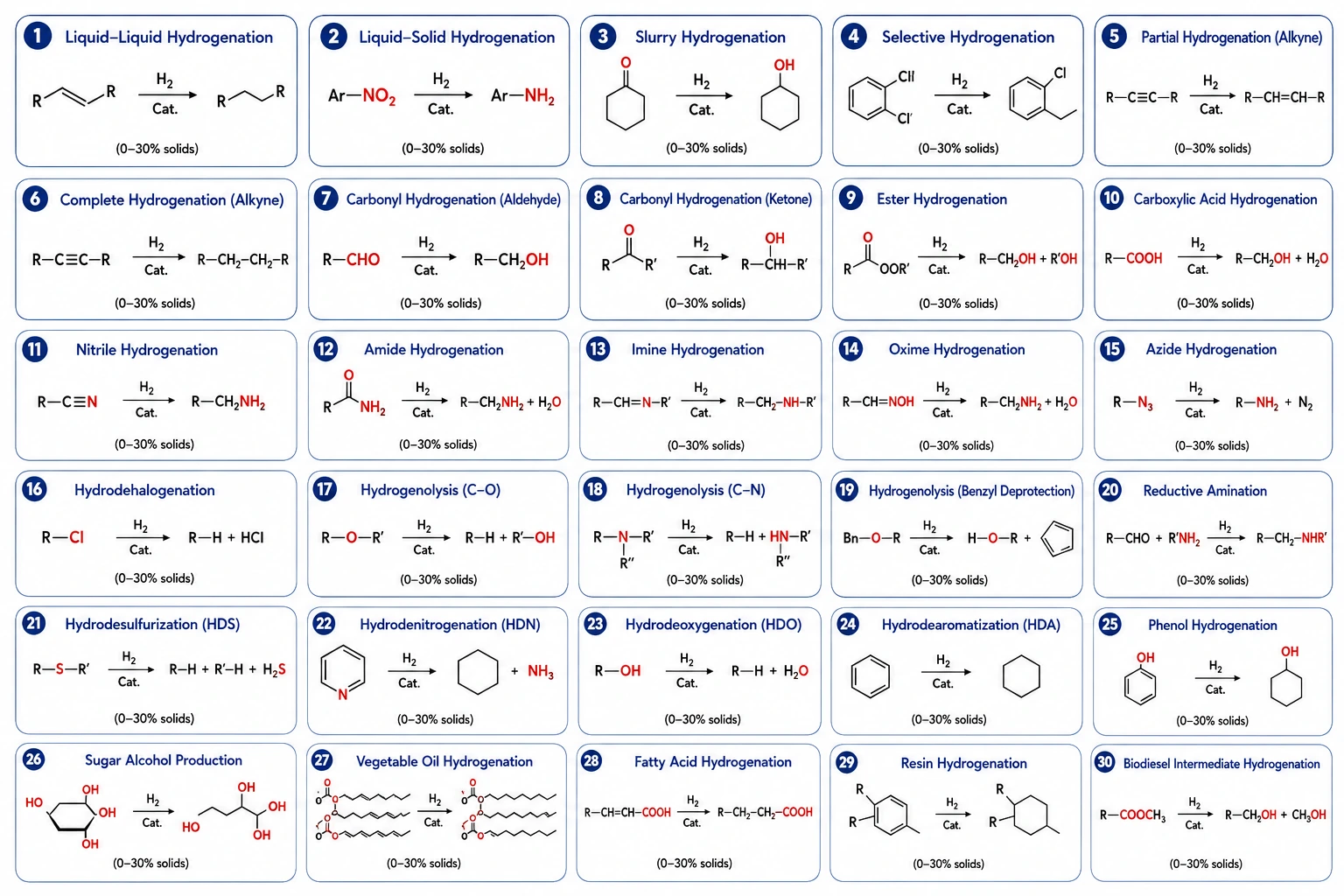

CONTINUOUS HYDROGENATION CAPABILITIES

Parameter Typical Range
Pressure 1–350 barg
Temperature Ambient to 950°C
Hydrogen Flow 1 mL/min to several thousand Nm³/h
Reactor Volume mL scale to commercial plants
Residence Time Seconds to several hours
Catalyst Pd, Pt, Ru, Rh, Ni, Cu, Co, Raney Ni, Raney Co,
Noble Metals, Custom Catalysts
Process Comparison
PROCESS COMPARISON
Why go for Continuous Process
PARAMETER BATCH HYDROGENATION CONTINUOUS HYDROGENATION
Operation One batch at a time Continuous feed and product withdrawal
Impurities Higher Lower
Production Intermittent Steady, uninterrupted
Product Quality Can vary batch to batch Highly consistent
Hydrogen Utilization Lower efficiency Higher efficiency, better contact
Heat Transfer Difficult, highly exothermic Excellent removal & control
Safety Larger reactant inventory Smaller volume, reduced risk
Pressure & Temp Control Can fluctuate Maintained at setpoints
Catalyst Use Slurry, needs separation Fixed-bed / continuous system
Scale-up Increase reactor size Number-up or run longer
Automation Limited High level of automation
Downtime Charge / Heat / Cool / Clean Cycle Minimal downtime
Operating Cost Higher labor & utility cost Lower cost over time
Capital Cost Lower initial investment Higher initial investment
Best For Small volumes, R&D Large-volume, consistent production

PILON'S MICRO CHANNEL REACTORS

PILON'S MICROGRID REACTORS
Reactor Model Volume
(mL)		 Pressure Temperature MOC
PFRx-Alpha (α) 5 FV
to
200 Barg 		(-)100 Deg C
to
1000 Deg C 		Silicon Carbide,
Titanium,
Inconel-600,
Incolloy,
Monel,
Duplex,
Glass,
SS316,
SS304,
Hastelloy,
Tantalum etc.
PFRx-Beta (β) 10
PFRx-Gamma (γ) 40
PFRx-Delta (Δ) 100
PFRx-Epsilon (Ε) 200

ALPHA | BETA | GAMMA | DELTA | EPSILON

CUSTOM MICRO CHANNELS AVAILBALE

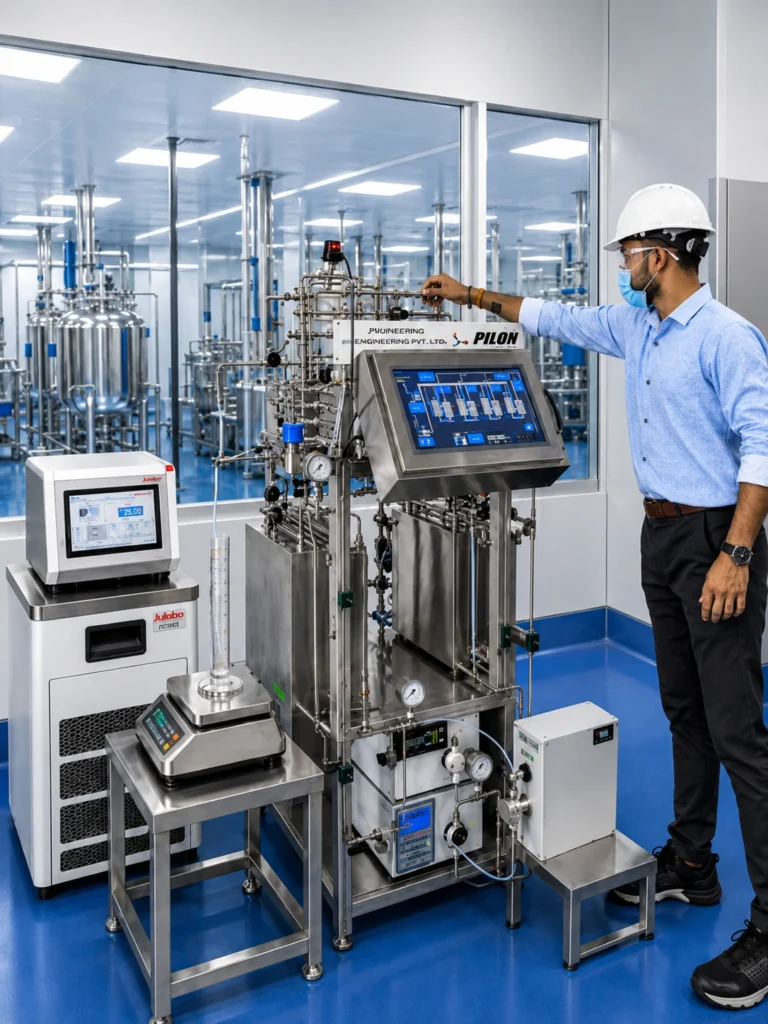

MGFR (Micro Grid Flow Reactor) & ContiHYflow (Continuous Hydrogenation Flow)
Units that every Lab must have

PILON'S SLURRY FLOW REACTORS

PILON'S MICROGRID REACTORS
Reactor Model Volume (mL) Pressure Temperature MOC
PILON Coreâ„¢ 300mL to
m3
Production Scale 		FV to
Custom High
Pressures 		(-)100°C to
Custom High
Temperatures 		Silicon Carbide, Titanium,
Inconel-600, Monel,
Duplex, Glass, SS316,
SS304, Hastelloy,
Tantalum etc.
PILON Vectorâ„¢
PILON Nexusâ„¢
PILON Vertexâ„¢
PILON Apexâ„¢

CORE | VECTOR | NEXUS | VERTEX | APEX

CUSTOM CELLS AVAILBALE
